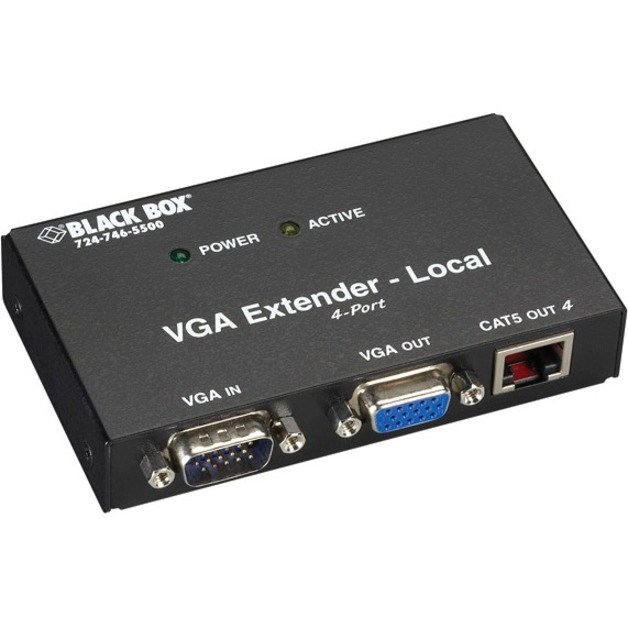

Use with VGA Receivers to place four VGA monitors up to 500 feet from your PC.
- Extend VGA as far as 500 feet (152.4 m) to four separate locations over CAT5, CAT5e, or CAT6 cables.
- Includes a local VGA monitor passthrough port.
- Has a 2-kV avalanche diode, which provides greater electrostatic discharge (ESD) protection and more reliable operation.
- For each remote location, add a VGA Receiver, 2-Port Remote (AC555A-REM-R2), which connects to two monitors at each location.
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Type
- Video Extender Transmitter
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Maximum Operating Distance
- 500 ft
- Video
- Graphics Modes
- XGA
- Maximum Video Resolution
- 1024 x 768
- Interfaces/Ports
- Network (RJ-45)
- Yes
- VGA In
- Yes
- VGA Out
- Yes
- Number of Network (RJ-45) Ports
- 4
- Number of VGA Inputs
- 1
- Number of VGA Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Power Description
- Input Voltage
- 110 V AC
- 5 V DC
- Physical Characteristics
- Transmitter Height
- 0.60"
- Transmitter Width
- 3.30"
- Transmitter Depth
- 2.30"
- Transmitter Weight (Approximate)
- 6.40 oz
- Miscellaneous
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
